Glass fiber reinforced plastic (FRP) grating is a plate-like material with spaces, which is made of glass fiber as a reinforcing material and impermeable polyester resin as a matrix. It is compounded through special processing. FRP grating can be used as a structural material. Mainly include floors, trench covers, platforms, ship platforms, stairs, planks, etc. in corrosive environments.
The grating is woven with multiple strips of glass fiber and integrally molded by resin casting. The fiberglass grating panels with regularly distributed rectangular and square grids have identical mechanical characteristics. It can be widely used to evaluate working platforms, equipment platforms, facility platforms, walkways, etc. in industries such as petroleum, chemical electronics, electric power, papermaking, printing and dyeing, electroplating, ocean exploration, sewage treatment, etc. It is an ideal product in corrosive environments and is also suitable for civil construction. on the device.
Product Basic Composition
| Material | CLASS A RESIN, ROVING AND ALUMINUM HYDROXIDE |
| Resin Type | Ortho, ISO, Vinylester, Epoxy, Phenolic and Others |
| Roving Brands | OWENSCORNING, JUSHI, CTG, CPIC, SHANGDONG FIBERGLASS, WBO, CHANGHAI, JOHNS MANILLE, ETC |
| Color | CUSTOMIZED BY RAL COLOR CARD |
| Surface | CONCAVE&MENISCUS, SMOOTH&PLAIN, SAND GRITED |
| Thickness | 12/13/14/15/20/23/25/30/35/38/40/50/60/100mm |
| Mesh Pattern | SQUARE MESH, RECTANGULAR MESH, MICRO MESH, MINI MESH AND LARGE MESH |
| Fire and smoke resistant | YES |
| UV resistant | YES |
| Anti-slip properties | YES |

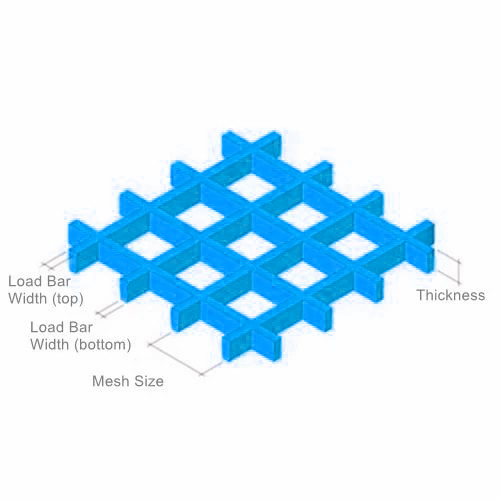

| Height(mm) | Mesh Size(mm) | Bearing Bar Thickness(Top/Bottom) | Panel Size(mm) | Approx. Weight (kg/㎡) | Open Area(%) |
| 13 | 38.1x38.1 | 6.0/5.0 | 1220x3660 | 6 | 68% |
| 15 | 38.1x38.1 | 6.0/5.0 | 1220x3660 | 7 | 65% |
| 20 | 38.1x38.1 | 6.0/5.0 | 1220x3660 | 9.8 | 65% |
| 25 | 38.1x38.1 | 6.4/5.0 | 1220x3660 | 12.3 | 68% |
| 30 | 38.1x38.1 | 6.5/5.0 | 1220x3660 | 14.6 | 68% |
| 38 | 38.1x38.1 | 7.0/5.0 | 1220x3660 | 19.5 | 68% |
| 35(HD) | 38.1x38.1 | 10.5/9.0 | 1220x3660 | 29.4 | 56% |
| 50(HD) | 38.1x38.1 | 11.0/9.0 | 1220x3660 | 42 | 56% |
| 60(HD) | 38.1x38.1 | 11.0/9.0 | 1220x3660 | 50.4 | 56% |
| 25 | 40x40 | 6.4/5.0 | 1007x4007 | 12.3 | 67% |
| 30 | 40x40 | 6.6/5.0 | 1007x4007 | 14.6 | 67% |
| 40 | 40x40 | 7.0/5.0 | 1007x4007 | 19.5 | 67% |
| 12 | 50x50 | 6.0/5.0 | 1220x3660 | 4.8 | 82% |
| 15 | 50.8x50.8 | 6.2/5.0 | 1220x3660 | 7 | 78% |
| 25 | 50.8x50.8 | 6.4/5.0 | 1220x3660 | 11.5 | 78% |
| 40 | 50.8x50.8 | 7.0/5.0 | 1220x3660 | 16 | 80% |
| 50 | 50.8x50.8 | 8.0/6.0 | 1220x3660 | 21 | 78% |
| 63 | 50.8x50.8 | 8.3/6.0 | 1220x3660 | 29 | 78% |
| 25 | 83.3x83.3 | 6.5/5.0 | 1007x4007 | 5.8 | 84% |
| 40 | 83.3x83.3 | 7.0/5.0 | 1007x4007 | 9.5 | 84% |

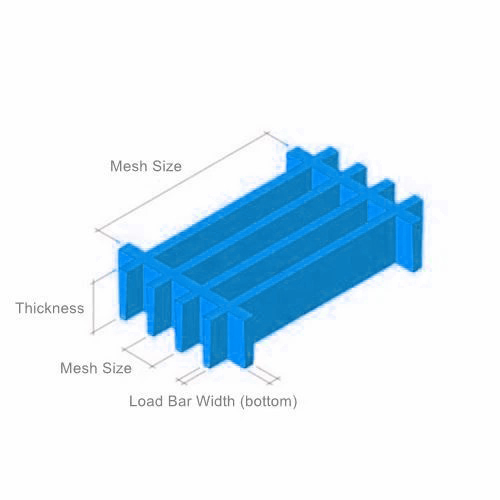

| Height(mm) | Mesh Size(mm) | Bearing Bar Thickness(Top/Bottom) | Panel Size(mm) | Approx. Weight (kg/㎡) | Open Area(%) |
| 38(HD) | 25.4x50.8 | 15.0/12.5 | 1275x1825 | 43.5 | 40% |
| 38(HD) | 25.4x50.8 | 12.0/9.0 | 1220x1830 | 32.4 | 48% |
| 50(HD) | 25.4x50.8 | 12.0/9.0 | 1220x1830 | 41 | 48% |
| 50(HD) | 25.4x50.8 | 15.0/12.5 | 1275x1825 | 55 | 40% |
| 25 | 25.4x101.6 | 6.5/5.0 | 1220x3660 | 14 | 67% |
| 25 | 25x100 | 7.0/5.5 | 1007x3007 | 13 | 67% |
| 25(HD) | 25.4x101.6 | 9.5/8.0 | 1220x3660 | 19.5 | 52% |
| 30 | 25x100 | 7.5/5.5 | 1007x3007 | 16 | 67% |
| 38 | 25.4x101.6 | 8.0/6.0 | 1220x3660 | 22.5 | 62% |
| 38(Moltruded) | 25.4x101.6 | 15.0/5.0 | 1220x3660 | 21 | 62% |
| 38 | 38.1x101.6 | 8.0/6.0 | 1220x3660 | 16.4 | 65% |
| 50(Moltruded) | 38.1x101.6 | 8.0/5.0 | 1220x3660 | 15.3 | 62% |
| 38 | 25.4x152.4 | 9.0/6.5 | 1220x3660 | 22.5 | 63% |
| 38 | 38.1x152.4 | 8.0/6.0 | 1524x4000 | 16 | 67% |
| 38(Type T) | 38.1x152.4 | 15.0/8.0 | 1220x3660 | 18.6 | 62% |
| 40 | 60x223 | 6.3/5.0 | 1788x2238 | 8.8 | 67% |
| 60 | 98x200 | 12.0/9.0 | 1015x3060 | 17.1 | 85% |

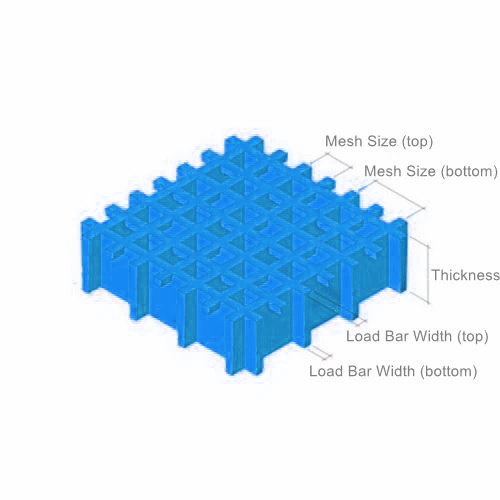

| Height(mm) | Mesh Size(mm) | Bearing Bar Thickness(Top/Bottom) | Panel Size(mm) | Approx. Weight (kg/㎡) | Open Area(%) |
| 30 | 12.7x12.7/38.1x38.1 | 7.5&4.5/5.0 | 1220x3660 | 22 | 30% |
| 22 | 13.3x13.3/40x40 | 6.4&4.5/5.0 | 1247x4047 | 15.2 | 30% |
| 30 | 13.3x13.3/40x40 | 7.0&4.5/5.0 | 1527x4047 | 19.6 | 30% |
| 38 | 13.3x13.3/40x40 | 7.0&4.5/5.0 | 1527x4047 | 20.3 | 30% |
| 25 | 19.05x19.05/38.1x38.1 | 6.4/5.0 | 1220x4000 | 16.8 | 40% |
| 30 | 19.05x19.05/38.1x38.1 | 6.5/5.0 | 1220x3660 | 17.5 | 40% |
| 38 | 19.05x19.05/38.1x38.1 | 7.0/5.0 | 1524x4000 | 23.5 | 40% |
| 50 | 19.05x19.05/38.1x38.1 | 7.0/5.0 | 1220x3660 | 30 | 40% |
| 14 | 20x20/40x40 | 6.4/5.0 | 1247x4047 | 10.5 | 42% |
| 22 | 20x20/40x40 | 6.4/5.0 | 1527x4047 | 15.2 | 42% |
| 30 | 20x20/40x40 | 6.5/5.0 | 1527x4047 | 18.3 | 42% |
| 40 | 20x20/40x40 | 7.0/5.0 | 1527x4047 | 23.7 | 42% |
| 50 | 25.4x25.4/50.8x50.8 | 7.5&7.0/5.0 | 1220x3660 | 28.5 | 55% |
| 25 | 26x26/52x52 | 7.0/5.0 | 1203x4011 | 13.1 | 60% |
| 38 | 26x26/52x52 | 7.0/5.0 | 1254x4013 | 19.5 | 60% |
