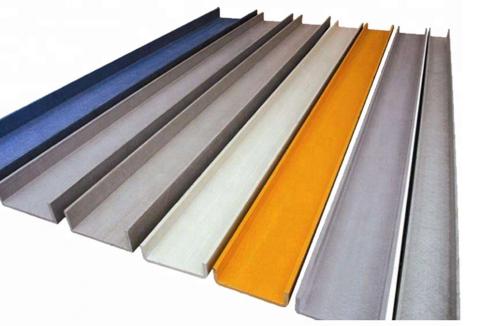

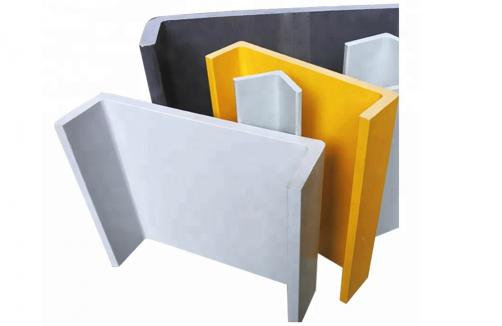

Sino Composite offers FRP channels with high strength, light weight, and excellent corrosion resistance. We provide various types of FRP channels, which are an integral part of our FRP building system. At the same time, we can provide customized channels processing.
Model |
Dimensions(mm) |
Approx.Weight |
1-C50 | 50x14x3.2 | 0.44 |
2-C50 | 50x30x5.0 | 1.06 |
3-C60 | 60x50x5.0 | 1.48 |
4-C76 | 76x35x5 | 1.32 |
5-C76 | 76x38x6.35 | 1.70 |
6-C89 | 89x38x4.76 | 1.41 |
7-C90 | 90x35x5 | 1.43 |
8-C102 | 102x35x6.4 | 2.01 |
9-C102 | 102x29x4.8 | 1.37 |
10-C102 | 102x29x6.4 | 1.78 |
11-C102 | 102x35x4.8 | 1.48 |
12-C102 | 102x44x6.4 | 2.10 |
13-C102 | 102x35x6.35 | 1.92 |
14-C120 | 120x25x5.0 | 1.52 |
15-C120 | 120x30x5.0 | 1.62 |
16-C120 | 120x40x5.0 | 1.81 |
17-C127 | 127x35x6.35 | 2.34 |
18-C140 | 140x38x6.4 | 2.45 |
19-C150 | 150x41x8.0 | 3.28 |
20-C152 | 152x42x6.4 | 2.72 |
21-C152 | 152x42x8.0 | 3.35 |
22-C152 | 152x42x9.5 | 3.95 |
23-C152 | 152x50x8.0 | 3.59 |
24-C180 | 180x65x5 | 2.76 |
25-C203 | 203x56x6.4 | 3.68 |
26-C203 | 203x56x9.5 | 5.34 |
27-C254 | 254x70x12.7 | 8.90 |
28-C305 | 305x76x12.7 | 10.44 |
