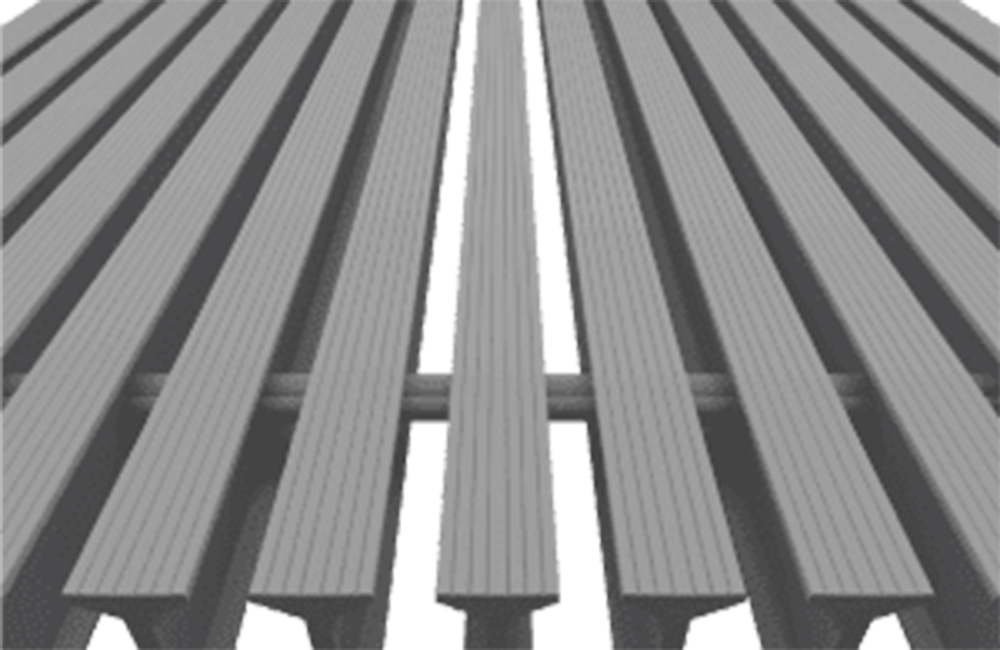

Ribbed surface
Ribbed surface is the preferred surface in wet environment and food industry.
FRP Pultruded Grating
Sino Composite offers customer with Pultruded FRP Grating system. This grating is with advantages of light weight, anti corrosive, high strength and cost efficient. Various of resin, color and specification are available. The “I” bar shape is with great performance of free design. “T” bar shape is with a strong surface that prevents objects catching in between the load bars. The pultruded FRP bar type profile is specifically designed to handle heavy wheel traffic like truck traffic, tow motors and fork lifts.

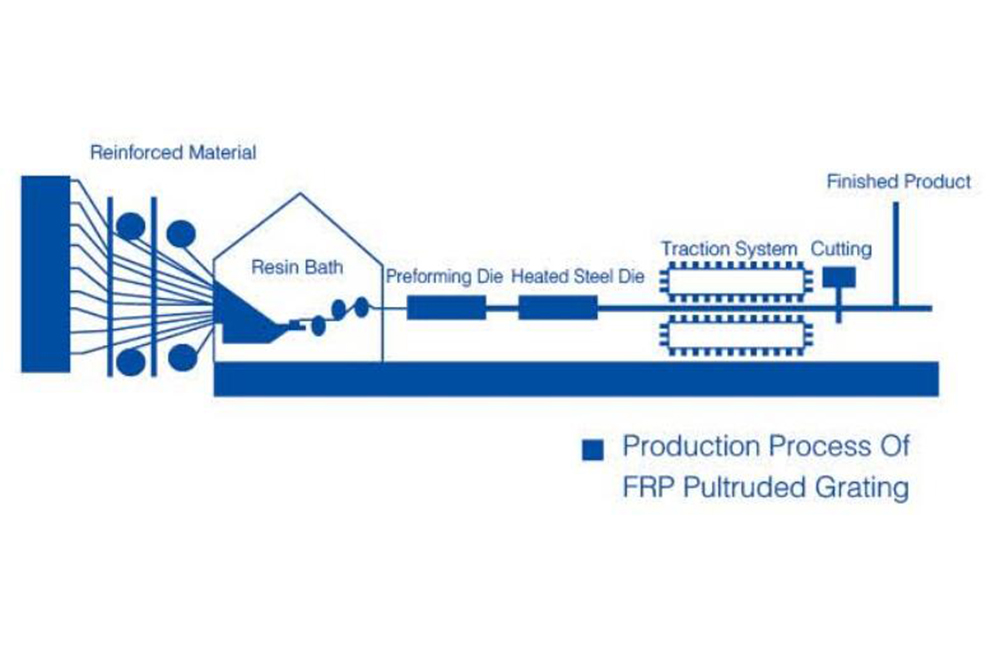

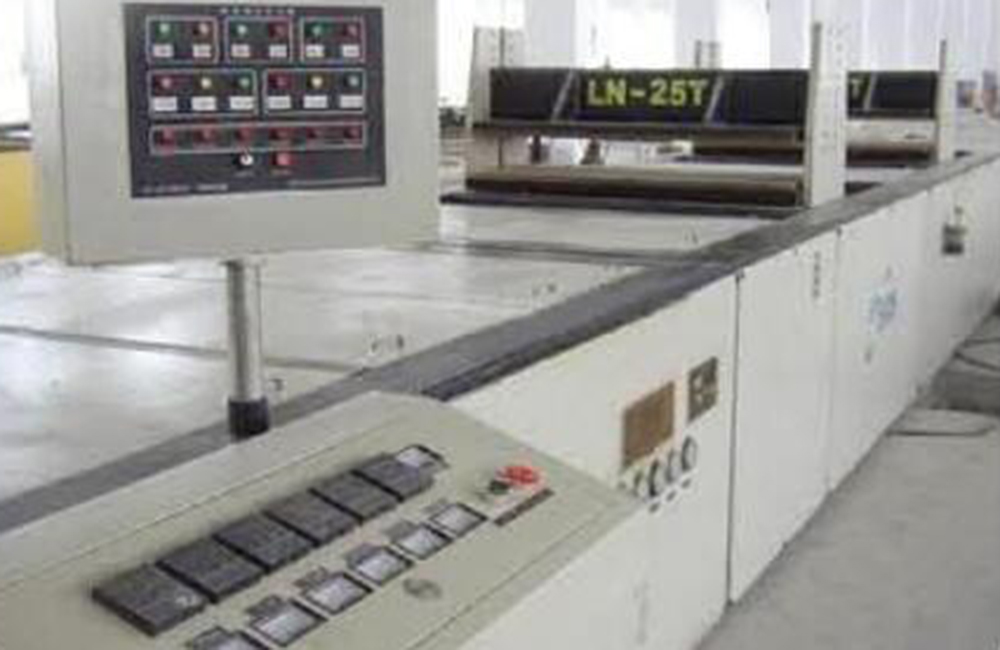

Pultruded FRP(Fiberglass Reinforced Plastic) grating consists of continuous glass strands encased in resin and wrapped in a surfacing veil which protects the fibers and allows resin to saturate the outermost part of the bar as well as penetrate between the glass fibers. This ensures a smooth and corrosion-resistant surface, with a higher glass/resin ratio than molded products. The individual bars are then assembled using cross bars and epoxy to mechanically join the load bars. Pultruded grating has unidirectional strength, with its much higher glass content resulting in a greater span capability than molded products. This product is usually specified in applications requiring larger spans or heavier loading.
Sino Composite Pultruded grating includes:

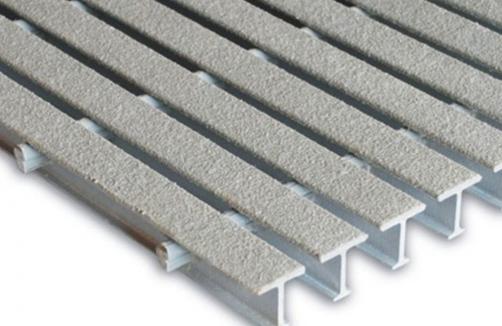

I Type
T Type
HL Type
Sino Composite manufactures FRP gratings are available in various of slip resistant surfaces.
FRP molded grating available surface options:

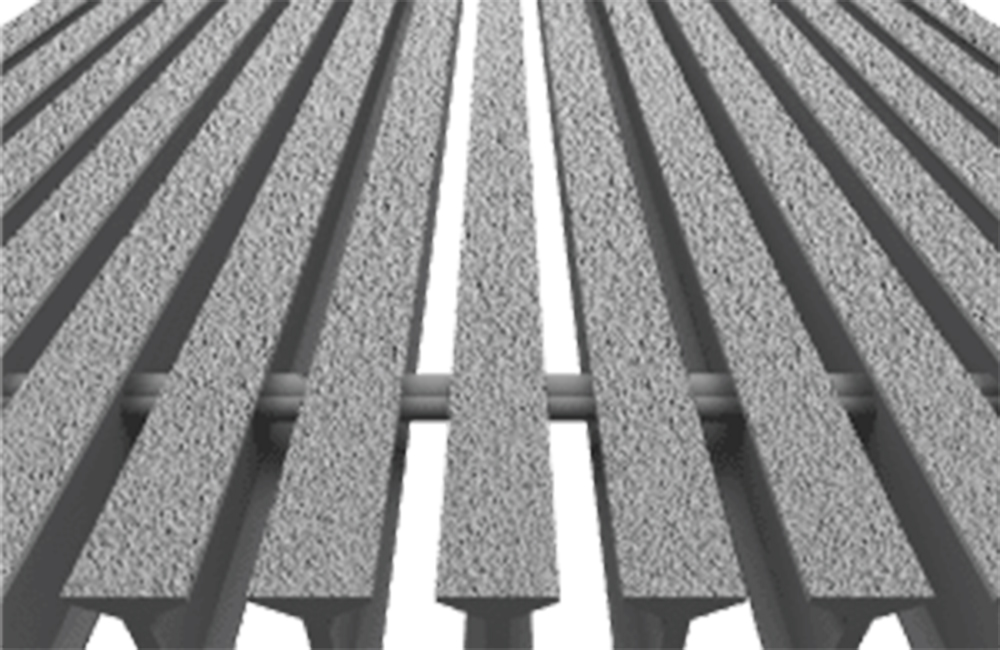

Sand grit surface
Sino Composite manufactures FRP gratings are available in various of slip resistant surfaces.
FRP molded grating available surface options:

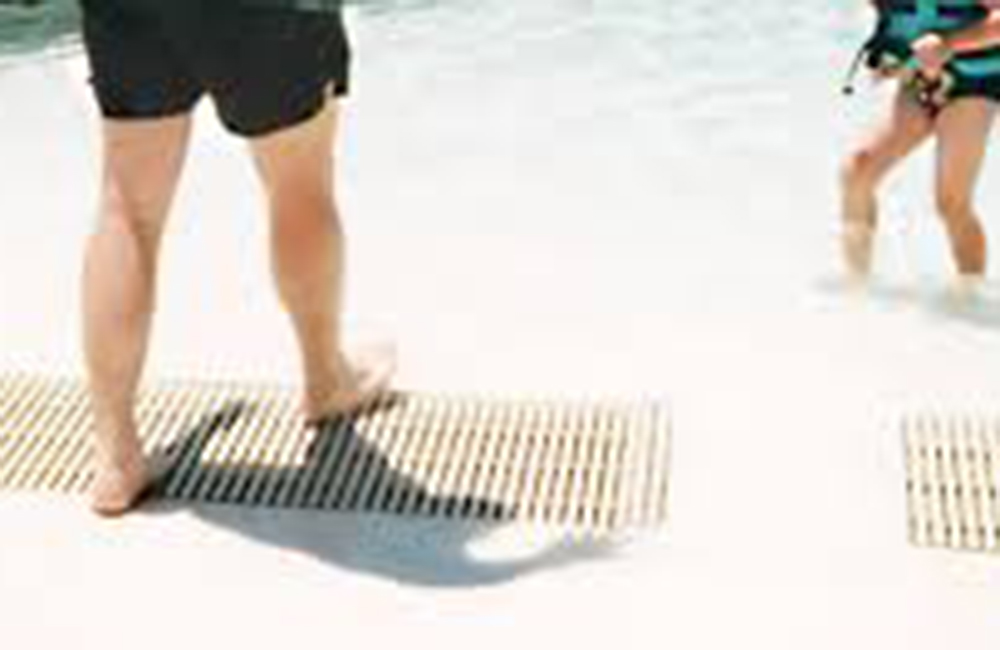

Barefoot grit
Amusement parks, water worlds, and seashores require gratings suitable for barefoot walking. Sino Composite unique surface sanding treatment is perfect for barefoot walking. At the same time, it has strong anti slip ability.

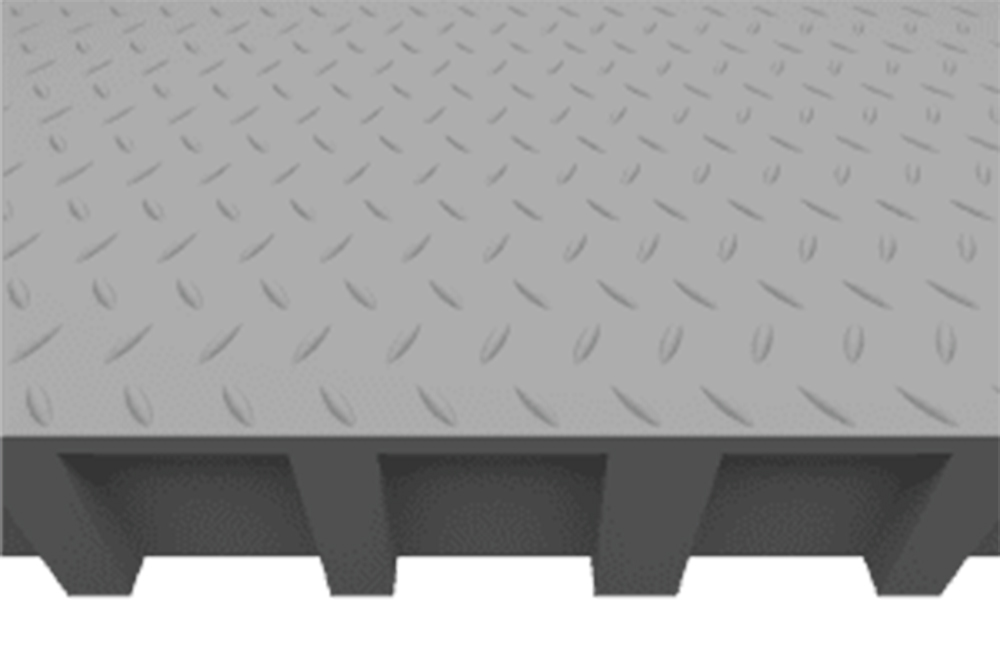

Cover surface
Cover surface is where high strength covered floors are required. The system is supplied with Checkerplate or Anti-Slip surface bonded to every load bar to ensure performance is maintained in harsh environments.
Partially standard FRP pultruded grating specifications and sizes.
Serial Number | Type | Thickness(mm) |
Size of Bearing Bar |
Weight | Open Area |
1 | I-4010 | 25.4 | 15.24/15.24 | 18.6 | 40% |
2 | I-5010 | 25.4 | 15.24/15.24 | 14.3 | 50% |
3 | I-6010 | 25.4 | 15.24/15.24 | 12.8 | 60% |
4 | I-40125 | 31.75 | 15.24/15.24 | 20 | 40% |
5 | I-50125 | 31.75 | 15.24/15.24 | 17.4 | 50% |
6 | I-60125 | 31.75 | 15.24/15.24 | 13.8 | 60% |
7 | I-4015 | 38.1 | 15.24/15.24 | 23.6 | 40% |
8 | I-5015 | 38.1 | 15.24/15.24 | 19.82 | 50% |
9 | I-6015 | 38.1 | 15.24/15.24 | 17.8 | 60% |
10 | I-4020 | 50.8 | 15.24/15.24 | 30.82 | 40% |
11 | I-5020 | 50.8 | 15.24/15.24 | 26.62 | 50% |
12 | I-6020 | 50.8 | 15.24/15.24 | 22.02 | 60% |
13 | T-1210 | 25.4 | 38.1/15.24 | 17.54 | 12% |
14 | T-1810 | 25.4 | 41.3/15.24 | 15.80 | 18% |
15 | T-2510 | 25.4 | 38.1/15.24 | 12.5 | 25% |
16 | T-3310 | 25.4 | 41.3/15.24 | 13.5 | 33% |
17 | T-3810 | 25.4 | 38.1/15.24 | 10.5 | 38% |
18 | T-1215 | 38.1 | 38.1/15.24 | 19.8 | 12% |
19 | T-2515 | 38.1 | 38.1/15.24 | 16.7 | 25% |
20 | T-3815 | 38.1 | 38.1/15.24 | 14.2 | 38% |
21 | T-5015 | 38.1 | 25.4/15.24 | 10.5 | 50% |
22 | T-3320 | 50.8 | 25.4/15.24 | 21.8 | 33% |
23 | T-5020 | 50.8 | 25.4/15.24 | 17.3 | 50% |
24 | HL-4020 | 50.8 | 15.24/15.24 | 70.1 | 40% |
25 | HL-5020 | 50.8 | 15.24/15.24 | 52.01 | 50% |
26 | HL-6020 | 50.8 | 15.24/15.24 | 44 | 60% |
27 | HL-6520 | 50.8 | 15.24/15.24 | 33.5 | 65% |
28 | HL-5825 | 63.5 | 15.88/15.88 | 48 | 58% |
Sino Composite uses different resins to achieve different environments. Covering all resin application ranges, our professional sales team will recommend different resin substrates according to customer needs.
Resin System
Resin Type | Resin Base | Description | Corrosion Resistance | Flame Spread Rating ASTM E84 | Available colors | Max. Oper. Temp. |
Type VEFR-20 | Vinyl Ester | Superior Corrosion Resistance and Fire Retardant | Excellent | Class 1, 20 or less | Dark Gray, Orange | 230℉ |
Type IFR-25 | Isophthalic Polyester | Industrial Grade Corrosion Resistance and Fire Retardant | Very Good | Class 1, 25 or less | Dark Gray, Green | 221℉ |
Type FG-20 | Isophthalic Polyester | Food Grade Corrosion Resistance and Fire Retardant | Very Good | Class 1, 20 or less | Light Gray, Light Green | 221℉ |
Type CFR-25 | Orthophthalic Polyester | Moderate Corrosion Resistance and Fire Retardant | Moderate | Class 1, 25 or less | Green Yellow Light Gray Dark Gray | 212℉ |
Type MP-4 | Phenolic | Low Smoke and Superior Fire Resistance | Very Good | Class 1, 5 or less | Reddish-Brown | 356℉ |
Type IFR-10 | Isophthalic Polyester | Industrial Grade Corrosion Resistance and Extra Fire Retardant | Very Good | Class 1, 10 or less | Custom | 221℉ |

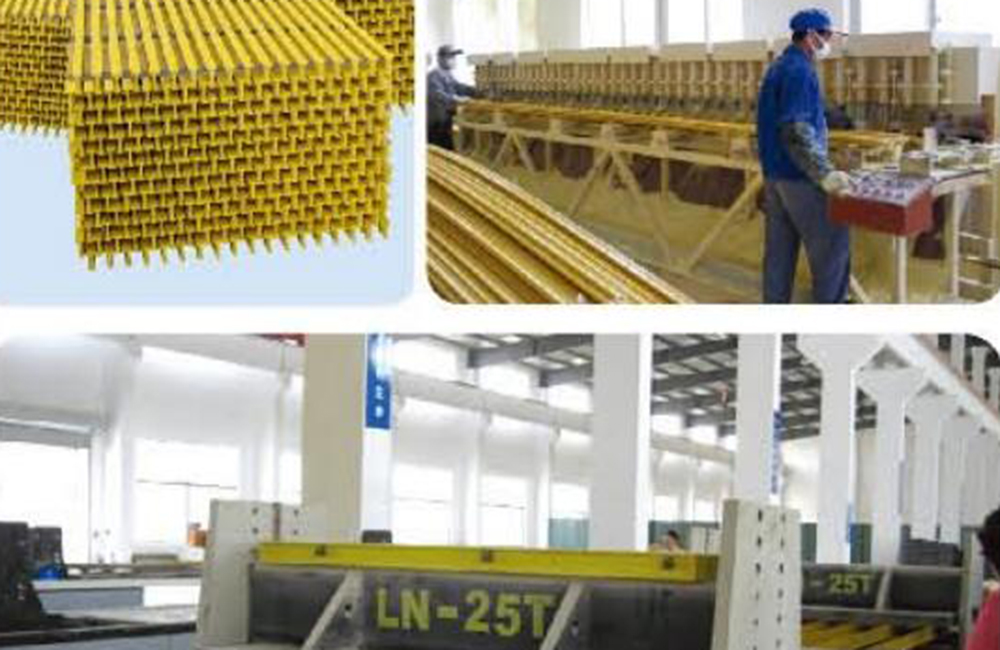

During nearly 20 years of FRP grating production time, our products are widely used in various industries. Petroleum industry, chemical industry, municipal construction, marine engineering, solar energy, architectural decoration, etc.

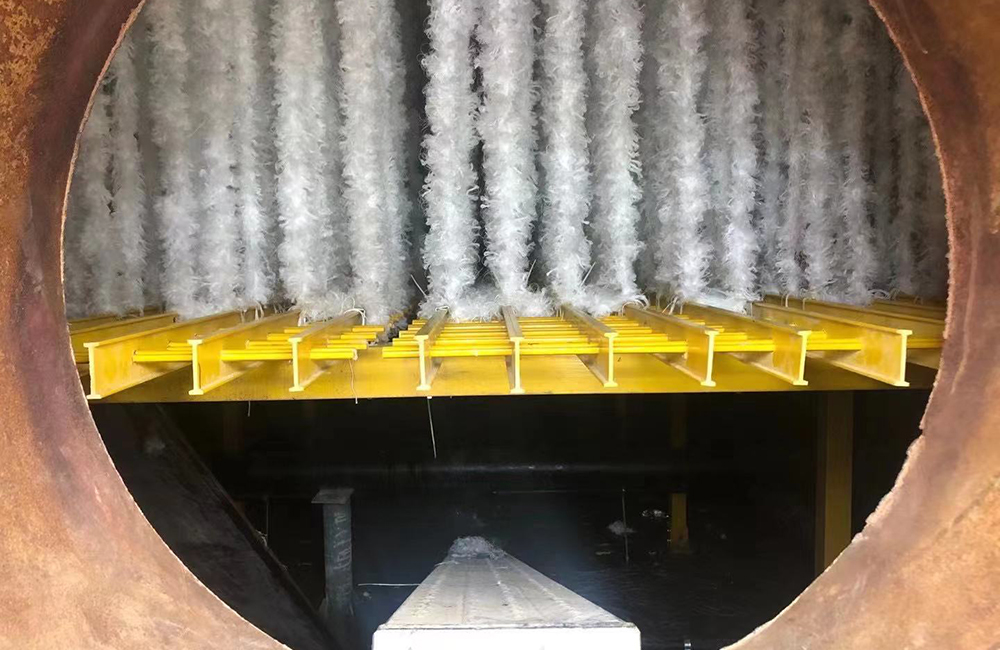

Chemical industry
Landscape
Solar energy
Sewage treatment

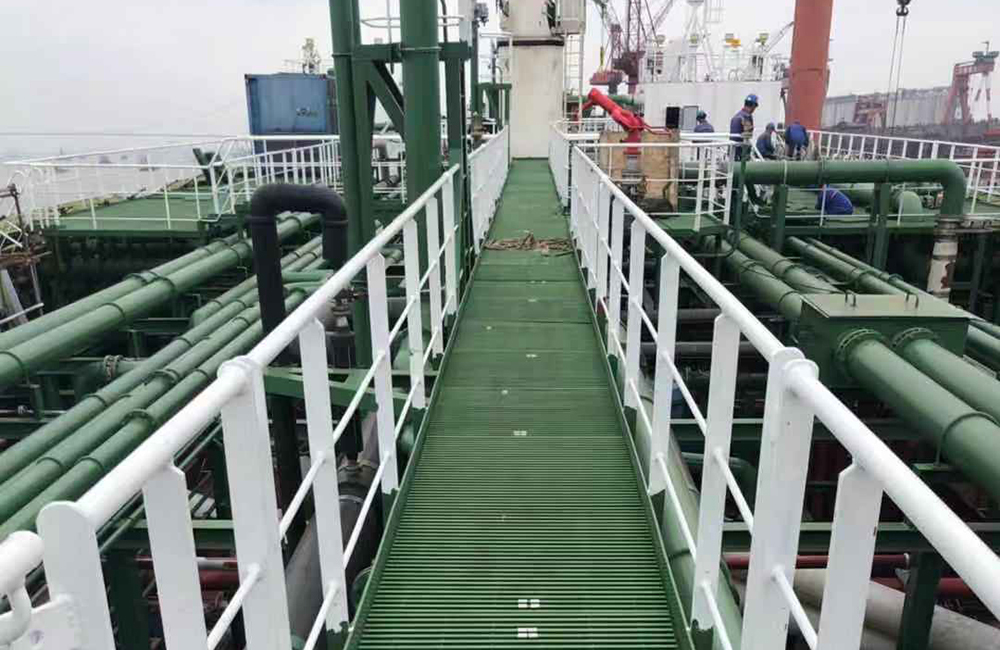

Ship and offshore
Architecture
