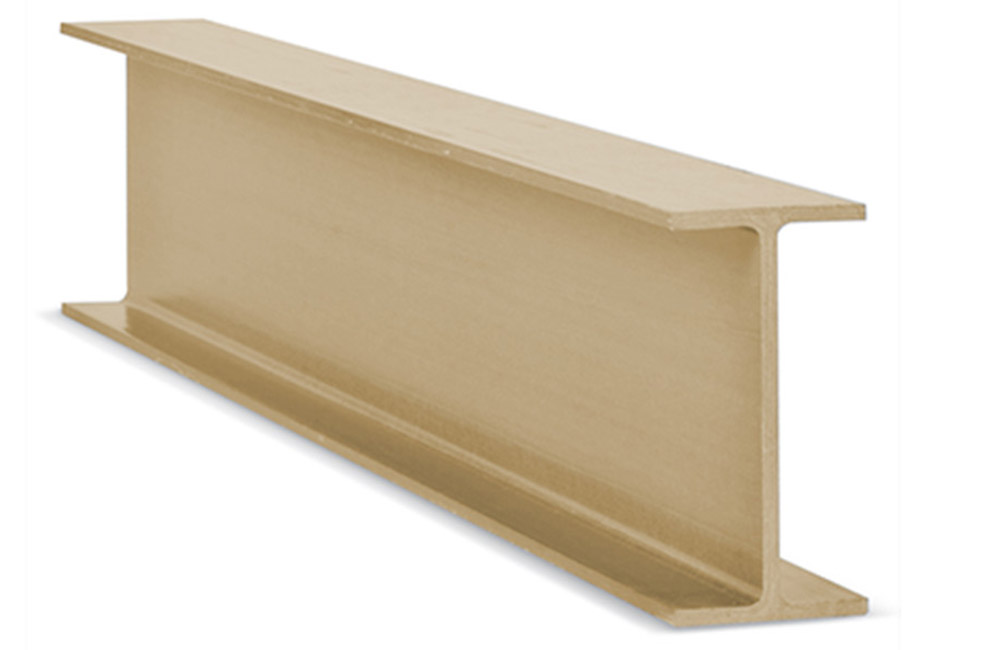

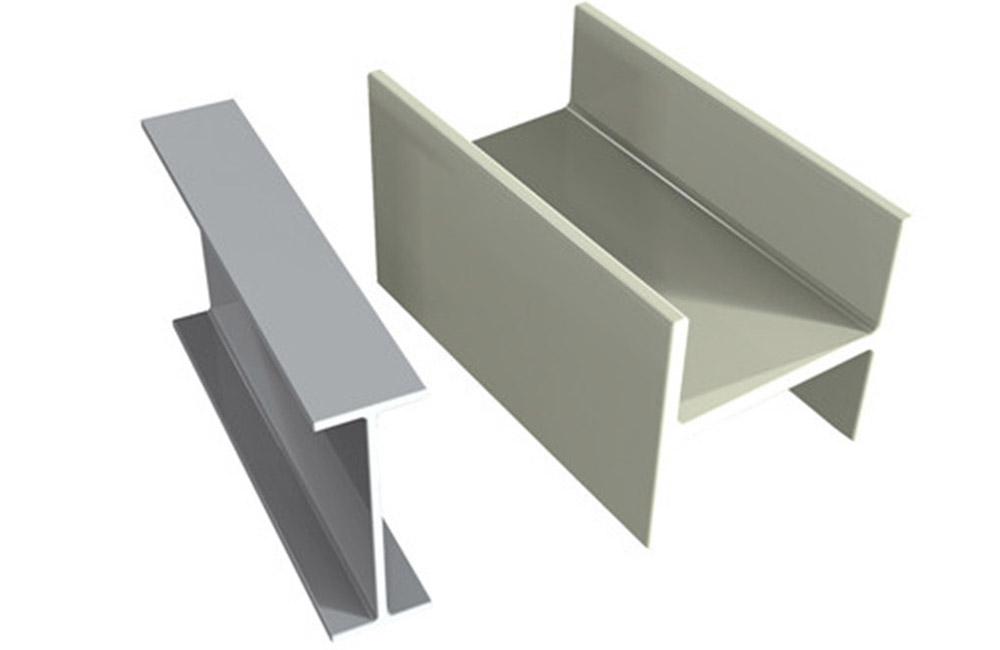

Sino Composite offers FRP I Beams with high strength, light weight, and excellent corrosion resistance. We provide various types of FRP I beams, which are an integral part of our FRP building system. At the same time, we can provide customized beams processing.
Model |
Dimensions(mm) |
Approx.Weight |
1-HB76 | 76x76x6.4 | 2.67 |
2-HB102 | 102x102x6.4 | 3.59 |
3-HB102 | 102x102x8.0 | 4.50 |
4-HB152 | 152x152x6.4 | 5.43 |
5-HB152 | 152x152x9.5 | 8.10 |
6-HB203 | 203x203x9.5 | 10.80 |
7-HB203 | 203x203x12.7 | 14.36 |
8-HB254 | 254x254x9.5 | 13.60 |
9-HB254 | 254x254x12.7 | 18.04 |
10-HB305 | 305x305x12.7 | 21.50 |
1-IB50 | 50x102x6.4 | 2.40 |
2-IB76 | 76x152x6.4 | 3.59 |
3-IB76 | 76x152x9.5 | 5.32 |
4-IB102 | 102x152x9.5 | 6.00 |
5-IB102 | 102x203x9.5 | 7.20 |
6-IB102 | 102x203x12.7 | 9.50 |
7-IB127 | 127x254x9.5 | 9.00 |
8-IB127 | 127x254x12.7 | 11.90 |
